背景

公司的一个项目TEST环境ES不需要授权、UAT环境使用x-pack做鉴权；这我看着官方文档写的代码不兼容了呀，也就出现了授权失败的问题；再加上我也是第一次遇到ES做鉴权的场景，以前公司直接就可以访问。

环境信息如下：

ElasticSearch版本：5.6.16
x-pack版本：5.6.16

主要异常信息

org.elasticsearch.transport.RemoteTransportException: [Z2KL4U0][100.10.10.100:9300][cluster:monitor/nodes/liveness]
Caused by: org.elasticsearch.ElasticsearchSecurityException: missing authentication token for action [cluster:monitor/nodes/liveness]

整个异常复现过程

1、参照官网使用TransportClient连接ES

官网地址：https://www.elastic.co/guide/en/elasticsearch/client/java-api/5.6/transport-client.html。

使用TransportClient连接ES的代码如下：

1）ElasticSearchConfig类：

@Configuration
@Slf4j
public class ElasticSearchConfig {

    /**
     * ES的地址集合
     */
    @Value("${elasticsearch.hostList}")
    private String hostList;

    /**
     * ES集群名称
     */
    @Value("${elasticsearch.clusterName}")
    private String clusterName;

    @Bean
    public TransportClient transportClient() {
        log.info("es hostList: {}, clusterName: {}", hostList, clusterName);
        String[] hostArray = hostList.split(",|;");
        int hostCount = hostArray.length;

        Settings settings = Settings.builder().put("cluster.name", clusterName).build();
        TransportClient transportClient = new PreBuiltTransportClient(settings);

        for (int i = 0; i < hostCount; i++) {
            String addr = hostArray[i];
            if (addr == null || addr.equals("")) {
                continue;
            }
            try {
                TransportAddress transportAddress = new InetSocketTransportAddress(InetAddress.getByName(addr.split(":")[0]), Integer.parseInt(addr.split(":")[1]));
                transportClient.addTransportAddresses(transportAddress);
            } catch (UnknownHostException e) {
                log.error("Fail to init es client", e);
            }

        }
        log.info("success to init elasticsearch transport client");
        return transportClient;
    }

}

2）application.yml：

elasticsearch:
  hostList: 127.0.0.1:9300
  indexName: idx_inventory_inventoryline
  clusterName: es-sg

run application，报错：

Caused by: org.elasticsearch.ElasticsearchSecurityException: missing authentication token for action [cluster:monitor/nodes/liveness]

报错很明确：没权限，这时候我们很自然的想到在Setting中加入用户名和密码，然而TransportClient它没有这个能力；这时x-pack-transport也就要登场了。

2、使用x-pack-transport解决授权问题

官方文档：https://www.elastic.co/guide/en/x-pack/5.6/index.html

1> 引入x-pack-transport maven依赖

官方文档：https://www.elastic.co/guide/en/x-pack/5.6/api-java.html#_installing_xpackclient；

<project ...>

   <repositories>
      <!-- add the elasticsearch repo -->
      <repository>
         <id>elasticsearch-releases</id>
         <url>https://artifacts.elastic.co/maven</url>
         <releases>
            <enabled>true</enabled>
         </releases>
         <snapshots>
            <enabled>false</enabled>
         </snapshots>
      </repository>
      ...
   </repositories>
   ...

   <dependencies>
      <!-- add the x-pack jar as a dependency -->
      <dependency>
         <groupId>org.elasticsearch.client</groupId>
         <artifactId>x-pack-transport</artifactId>
         <version>5.6.16</version>
      </dependency>
      ...
   </dependencies>
   ...

 </project>

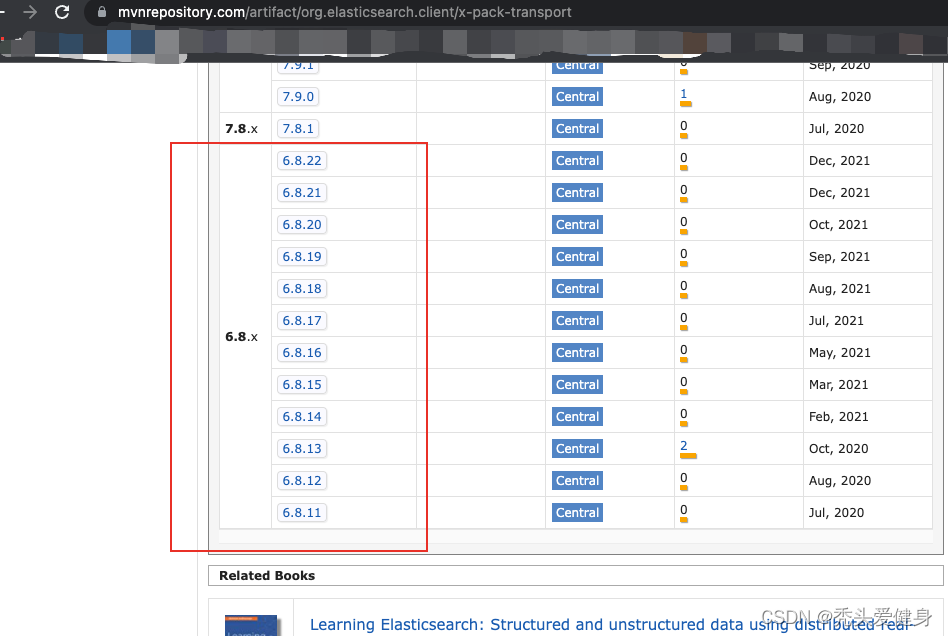

在maven repository中我们可以看到x-pack-transport的最老版本是6.8.11，而它和ES5.x版本是不兼容的，所以我们需要在pom中引入url为https://artifacts.elastic.co/maven的repository信息；

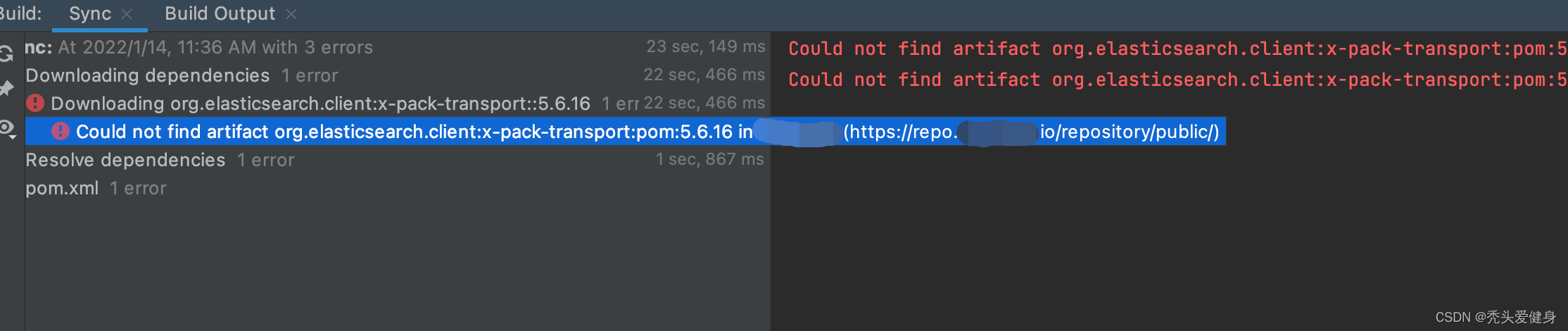

不过有时我们从https://artifacts.elastic.co/maven也拉不到x-pack-transport的5.X版本（或者说直接就从私服上拉不到），比如我这样的：

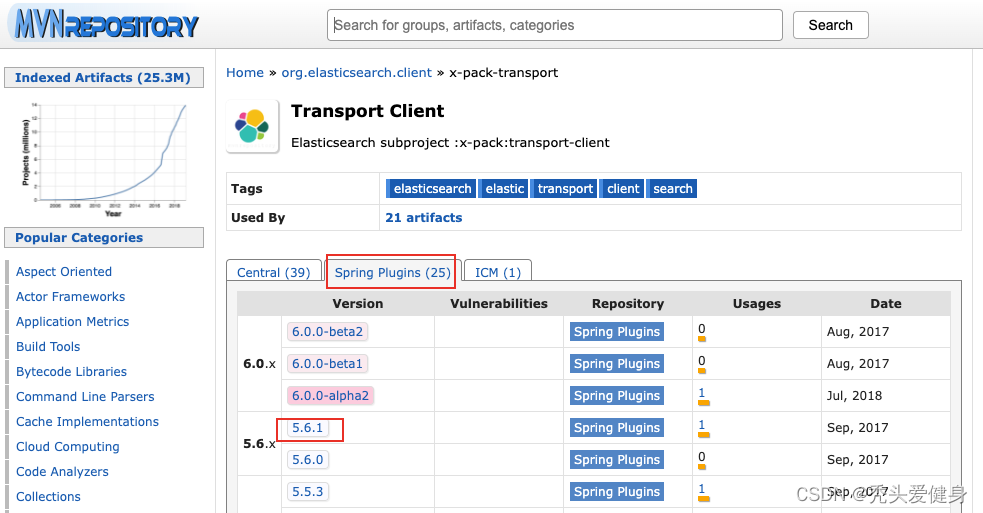

好巧不巧的看到maven repository的Spring Pluginstab中有5.6.X版本的；

于是直接拿来用了，发现可以正常引入/使用；

<dependency>
    <groupId>org.elasticsearch.client</groupId>
    <artifactId>x-pack-transport</artifactId>
    <version>5.6.1</version>
</dependency>

2> 使用PreBuiltXPackTransportClient

官方文档：https://www.elastic.co/guide/en/x-pack/current/java-clients.html#java-clients；

在自动注入TransportClient的地方使用PreBuiltXPackTransportClient替代PreBuiltTransportClient；

application.yml

elasticsearch:
  hostList: 127.0.0.1:9300
  indexName: idx_inventory_inventoryline
  clusterName: es-sg
  userName: elastic
  password: elastic
  security:
    enable: true

ElasticSearchConfig类：

@Configuration
@Slf4j
public class ElasticSearchConfig {

    /**
     * ES的地址集合
     */
    @Value("${elasticsearch.hostList}")
    private String hostList;

    /**
     * ES集群名称
     */
    @Value("${elasticsearch.clusterName}")
    private String clusterName;

    @Value("${elasticsearch.password}")
    private String password;

    @Value("${elasticsearch.userName}")
    private String userName;

    @Bean
    public TransportClient transportClient() {
        log.info("es hostList: {}, clusterName: {}", hostList, clusterName);
        String[] hostArray = hostList.split(",|;");
        int hostCount = hostArray.length;

        Settings settings = Settings.builder()
                    .put("cluster.name", clusterName)
                    // 设置xpack权限用户
                    .put("xpack.security.user", userName + ":" + password)
                    .build();
        TransportClient transportClient = new PreBuiltXPackTransportClient(settings);

        for (int i = 0; i < hostCount; i++) {
            String addr = hostArray[i];
            if (addr == null || addr.equals("")) {
                continue;
            }
            try {
                TransportAddress transportAddress = new InetSocketTransportAddress(InetAddress.getByName(addr.split(":")[0]), Integer.parseInt(addr.split(":")[1]));
                transportClient.addTransportAddresses(transportAddress);
            } catch (UnknownHostException e) {
                log.error("Fail to init es client", e);
            }

        }
        log.info("success to init elasticsearch transport client");
        return transportClient;
    }
}

2> 使用x-pack和不使用时做兼容处理

由于我们测试环境和UAT环境一个ES要授权、一个不需要，所以要在一套代码中做兼容处理（搞个开关，判断一下）；也就是测试环境使用PreBuiltTransportClient，UAT环境使用PreBuiltXPackTransportClient。

代码如下：

@Configuration
@Slf4j
public class ElasticSearchConfig {

    /**
     * ES的地址集合
     */
    @Value("${elasticsearch.hostList}")
    private String hostList;

    /**
     * ES集群名称
     */
    @Value("${elasticsearch.clusterName}")
    private String clusterName;

    @Value("${elasticsearch.password}")
    private String password;

    @Value("${elasticsearch.userName}")
    private String userName;

    @Value("${elasticsearch.security.enable}")
    private Boolean enableSecurity = false;

//    @PostConstruct
//    void init() {
//        System.setProperty("es.set.netty.runtime.available.processors", "false");
//    }

    @Bean
    public TransportClient transportClient() {
        log.info("es hostList: {}, clusterName: {}", hostList, clusterName);
        String[] hostArray = hostList.split(",|;");
        int hostCount = hostArray.length;
        Settings settings;
        TransportClient transportClient;
        if (enableSecurity) {
            settings = Settings.builder()
                    .put("cluster.name", clusterName)
                    // 设置xpack权限用户
                    .put("xpack.security.user", userName + ":" + password)
//                    .put("client.transport.sniff", true)
                    .build();
            transportClient = new PreBuiltXPackTransportClient(settings);
        } else {
            settings = Settings.builder().put("cluster.name", clusterName).build();
            transportClient = new PreBuiltTransportClient(settings);
        }

        for (int i = 0; i < hostCount; i++) {
            String addr = hostArray[i];
            if (addr == null || addr.equals("")) {
                continue;
            }
            try {
                TransportAddress transportAddress = new InetSocketTransportAddress(InetAddress.getByName(addr.split(":")[0]), Integer.parseInt(addr.split(":")[1]));
                transportClient.addTransportAddresses(transportAddress);
            } catch (UnknownHostException e) {
                log.error("Fail to init es client", e);
            }

        }
        log.info("success to init elasticsearch transport client");
        return transportClient;
    }

}

run application，已经可以正常运行了；

具体异常信息

org.elasticsearch.transport.RemoteTransportException: [Z2KL4U0][100.10.10.100:9300][cluster:monitor/nodes/liveness]
Caused by: org.elasticsearch.ElasticsearchSecurityException: missing authentication token for action [cluster:monitor/nodes/liveness]
	at org.elasticsearch.xpack.security.support.Exceptions.authenticationError(Exceptions.java:39) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.DefaultAuthenticationFailureHandler.missingToken(DefaultAuthenticationFailureHandler.java:74) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$AuditableTransportRequest.anonymousAccessDenied(AuthenticationService.java:553) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lambda$handleNullToken$16(AuthenticationService.java:363) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.handleNullToken(AuthenticationService.java:368) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.consumeToken(AuthenticationService.java:295) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lambda$extractToken$7(AuthenticationService.java:267) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.extractToken(AuthenticationService.java:284) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lambda$null$0(AuthenticationService.java:218) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.action.ActionListener$1.onResponse(ActionListener.java:59) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.xpack.security.authc.TokenService.getAndValidateToken(TokenService.java:218) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lambda$authenticateAsync$2(AuthenticationService.java:214) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lambda$lookForExistingAuthentication$4(AuthenticationService.java:246) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.lookForExistingAuthentication(AuthenticationService.java:257) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.authenticateAsync(AuthenticationService.java:210) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService$Authenticator.access$000(AuthenticationService.java:159) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.authc.AuthenticationService.authenticate(AuthenticationService.java:122) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.transport.ServerTransportFilter$NodeProfile.inbound(ServerTransportFilter.java:146) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.xpack.security.transport.SecurityServerTransportInterceptor$ProfileSecuredRequestHandler.messageReceived(SecurityServerTransportInterceptor.java:314) ~[x-pack-api-5.6.1.jar:5.6.1]
	at org.elasticsearch.transport.RequestHandlerRegistry.processMessageReceived(RequestHandlerRegistry.java:69) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.transport.TcpTransport$RequestHandler.doRun(TcpTransport.java:1556) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.common.util.concurrent.AbstractRunnable.run(AbstractRunnable.java:37) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.common.util.concurrent.EsExecutors$1.execute(EsExecutors.java:110) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.transport.TcpTransport.handleRequest(TcpTransport.java:1513) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.transport.TcpTransport.messageReceived(TcpTransport.java:1396) ~[elasticsearch-5.6.16.jar:5.6.16]
	at org.elasticsearch.transport.netty4.Netty4MessageChannelHandler.channelRead(Netty4MessageChannelHandler.java:75) ~[transport-netty4-client-5.6.16.jar:5.6.16]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:348) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:340) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.handler.codec.ByteToMessageDecoder.fireChannelRead(ByteToMessageDecoder.java:310) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.handler.codec.ByteToMessageDecoder.fireChannelRead(ByteToMessageDecoder.java:297) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.handler.codec.ByteToMessageDecoder.callDecode(ByteToMessageDecoder.java:413) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.handler.codec.ByteToMessageDecoder.channelRead(ByteToMessageDecoder.java:265) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:348) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:340) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.ChannelInboundHandlerAdapter.channelRead(ChannelInboundHandlerAdapter.java:86) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:348) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:340) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.handler.logging.LoggingHandler.channelRead(LoggingHandler.java:241) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:348) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:340) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1334) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:348) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:926) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:134) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:644) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.nio.NioEventLoop.processSelectedKeysPlain(NioEventLoop.java:544) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:498) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:458) ~[netty-all-4.1.63.Final.jar:4.1.63.Final]
	at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858) ~[na:na]
	at java.lang.Thread.run(Thread.java:834) ~[na:1.8.0_275]
