android开发之ExpandableListView的使用，实现类似QQ好友列表

由于工作需要，今天简单研究了一下ExpandableListView，做了一个类似QQ列表的Demo，和大家分享一下。

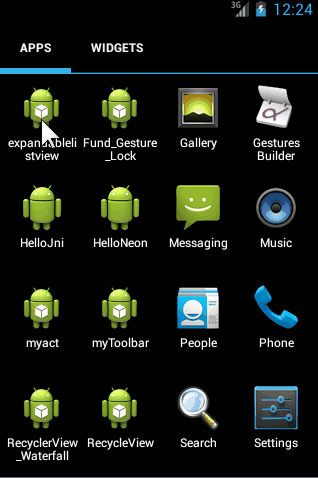

效果图如下：

先来看看主布局文件：

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#EDEDED"
    tools:context="com.example.expandablelistview.MainActivity" >

    <ExpandableListView
        android:id="@+id/my_listview"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_marginLeft="8dp"
        android:layout_marginRight="8dp"
        android:layout_marginTop="10dp"
        android:divider="@null"
        android:dividerHeight="8dip" >
    </ExpandableListView>

</RelativeLayout>

这里我们不使用系统默认的分隔线，两个组之间的距离为8dp.

对于ExpandableListView，系统为我们提供了专门的适配器BaseExpandableListAdapter，我们可以自定义一个适配器继承BaseExpandableListAdapter，实现该类中的一些方法即可。
代码如下：

public class MyAdapter extends BaseExpandableListAdapter {

    private List<GroupBean> list;
    private Context context;

    public MyAdapter(List<GroupBean> list, Context context) {
        this.list = list;
        this.context = context;
    }

    public MyAdapter() {
    }

    @Override
    public int getGroupCount() {
        return list.size();
    }

    @Override
    public int getChildrenCount(int groupPosition) {
        return list.get(groupPosition).getChildren().size();
    }

    @Override
    public Object getGroup(int groupPosition) {
        return list.get(groupPosition);
    }

    @Override
    public Object getChild(int groupPosition, int childPosition) {
        return list.get(groupPosition).getChildren().get(childPosition);
    }

    @Override
    public long getGroupId(int groupPosition) {
        return groupPosition;
    }

    @Override
    public long getChildId(int groupPosition, int childPosition) {
        return childPosition;
    }

    @Override
    public boolean hasStableIds() {
        return false;
    }

    @Override
    public View getGroupView(int groupPosition, boolean isExpanded,
            View convertView, ViewGroup parent) {
        GroupHolder holder;
        if (convertView == null) {
            holder = new GroupHolder();
            convertView = LayoutInflater.from(context).inflate(
                    R.layout.item_group, null);
            holder.title = (TextView) convertView
                    .findViewById(R.id.group_title);
            holder.iv = (ImageView) convertView.findViewById(R.id.group_ico);
            convertView.setTag(holder);
        } else {
            holder = (GroupHolder) convertView.getTag();
        }
        holder.title.setText(list.get(groupPosition).getGroupName());
        if (isExpanded) {
            holder.iv.setImageResource(R.drawable.rounds_open);
        } else {
            holder.iv.setImageResource(R.drawable.rounds_close);
        }
        return convertView;
    }

    @Override
    public View getChildView(int groupPosition, int childPosition,
            boolean isLastChild, View convertView, ViewGroup parent) {
        ChildHolder holder;
        if (convertView == null) {
            holder = new ChildHolder();
            convertView = LayoutInflater.from(context).inflate(
                    R.layout.item_child, null);
            holder.name = (TextView) convertView.findViewById(R.id.child_name);
            holder.sign = (TextView) convertView.findViewById(R.id.child_sign);
            convertView.setTag(holder);
        } else {
            holder = (ChildHolder) convertView.getTag();
        }
        ChildBean cb = list.get(groupPosition).getChildren().get(childPosition);
        holder.name.setText(cb.getName());
        holder.sign.setText("[签名]"+cb.getSign());
        return convertView;
    }

    @Override
    public boolean isChildSelectable(int groupPosition, int childPosition) {
        return false;
    }

    class GroupHolder {
        TextView title;
        ImageView iv;
    }

    class ChildHolder {
        TextView name, sign;
    }
}

这里的代码有点长，我们稍微解释一下，先是构造方法中传入两个参数，一个是数据源list，另外一个是上下文，list是一个GroupBean集合，GroupBean如下：

public class GroupBean {

    private String groupName;
    private List<ChildBean> children;

    public String getGroupName() {
        return groupName;
    }

    public void setGroupName(String groupName) {
        this.groupName = groupName;
    }

    public List<ChildBean> getChildren() {
        return children;
    }

    public void setChildren(List<ChildBean> children) {
        this.children = children;
    }

    public GroupBean(String groupName, List<ChildBean> children) {
        this.groupName = groupName;
        this.children = children;
    }

    public GroupBean() {
    }

}

很明显，GroupBean有两个属性，一个是组名字，另外一个是该组下子项的一个集合，这个ChildBean就是每个组下面的每一个对象的数据，ChildBean代码如下：

public class ChildBean {

    private String name;
    private String sign;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getSign() {
        return sign;
    }

    public void setSign(String sign) {
        this.sign = sign;
    }

    public ChildBean(String name, String sign) {
        this.name = name;
        this.sign = sign;
    }

    public ChildBean() {
    }

}

说完list，下面就是getGroupCount()和getChildrenCount(),这个有点类似于我们使用BaseAdapter时的getCount(),不同的是这里分别要返回每个组的数量，以及组内成员的数量，那么组的数量当然就是list.size()，组内成员的数量由于每组不同，所以要先拿到每个组，再拿到该组里成员的数量，代码就是list.get(groupPosition).getChildren().size();。接下来的两个方法就是getGroup()和getChild(),这个类似于BaseAdapter中的getItem，我们返回的时候还是组和组内的子项分开返回，代码很简单，就不多说了。稍微长一点的方法就是getGroupView和getChildView，不多也都没啥逻辑，和我们在ListView中使用BaseAdapter中的getView方法差不多，不同的是数据赋值的时候有差别。

我个人觉得，使用ExpandableListView关键在于把数据结构搞清楚，Group和Child搞清楚了，其他的都很简单。

这里我把Group的布局和Child的布局贴出来给大家看看：

item_group.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="48dp"
    android:background="@drawable/item_background_select" >

    <TextView
        android:id="@+id/group_title"
        android:layout_width="wrap_content"
        android:layout_height="48dp"
        android:layout_marginLeft="36dp"
        android:gravity="center"
        android:text="好友分组"
        android:textSize="18sp" />

    <ImageView
        android:id="@+id/group_ico"
        android:layout_width="24dip"
        android:layout_height="24dip"
        android:layout_alignParentRight="true"
        android:layout_marginBottom="12dp"
        android:layout_marginLeft="24dp"
        android:layout_marginRight="24dp"
        android:layout_marginTop="12dp"
        android:scaleType="centerInside"
        android:src="@drawable/rounds_close" />

    <TextView
        android:id="@+id/split_lines"
        android:layout_width="1dip"
        android:layout_height="48dp"
        android:layout_toLeftOf="@id/group_ico"
        android:background="#E6E6E6" />

</RelativeLayout>

item_child.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="36dp"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/child_name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:paddingLeft="10dip"
        android:text="姓名"
        android:textSize="18sp" />

    <TextView
        android:id="@+id/child_sign"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@id/child_name"
        android:paddingLeft="10dip"
        android:paddingRight="10dip"
        android:text="签名"
        android:textSize="12sp" />

    <View
        android:layout_width="match_parent"
        android:layout_height="1dp"
        android:background="#B2DFEE" />

</RelativeLayout>

这里还涉及到一个圆角方框，代码是这样的：
item_background_select.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" >

    <corners android:radius="8dip" />

    <solid android:color="#FFFFFFFF" />

</shape>

好了，所有的准备工作都已经完成，下面看看怎么使用

public class MainActivity extends Activity {

    private ExpandableListView mListView;
    private MyAdapter adapter;
    private List<GroupBean> list;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //初始化数据
        initData();
        mListView = (ExpandableListView) this.findViewById(R.id.my_listview);
        adapter = new MyAdapter(list, this);
        mListView.setAdapter(adapter);
        mListView.setGroupIndicator(null);
//      mListView.expandGroup(0);
    }

    private void initData() {
        list = new ArrayList<GroupBean>();
        {
            List<ChildBean> list1 = new ArrayList<ChildBean>();
            ChildBean cb1 = new ChildBean("妈妈", "123");
            ChildBean cb2 = new ChildBean("爸爸", "456");
            ChildBean cb3 = new ChildBean("爷爷", "789");
            ChildBean cb4 = new ChildBean("妹妹", "000");
            list1.add(cb1);
            list1.add(cb2);
            list1.add(cb3);
            list1.add(cb4);
            GroupBean gb1 = new GroupBean("家", list1);
            list.add(gb1);
        }
        {
            List<ChildBean> list1 = new ArrayList<ChildBean>();
            ChildBean cb1 = new ChildBean("张三", "123");
            ChildBean cb2 = new ChildBean("李四", "456");
            ChildBean cb3 = new ChildBean("王五", "789");
            ChildBean cb4 = new ChildBean("赵六", "000");
            ChildBean cb5 = new ChildBean("风起", "1111");
            ChildBean cb6 = new ChildBean("马坝", "222");
            ChildBean cb7 = new ChildBean("迁就", "3333333");
            list1.add(cb1);
            list1.add(cb2);
            list1.add(cb3);
            list1.add(cb4);
            list1.add(cb5);
            list1.add(cb6);
            list1.add(cb7);
            GroupBean gb1 = new GroupBean("我的朋友", list1);
            list.add(gb1);
        }
        {
            List<ChildBean> list1 = new ArrayList<ChildBean>();
            ChildBean cb1 = new ChildBean("Tom", "123");
            ChildBean cb2 = new ChildBean("Jerry", "456");
            ChildBean cb4 = new ChildBean("Bush", "000");
            list1.add(cb1);
            list1.add(cb2);
            list1.add(cb4);
            GroupBean gb1 = new GroupBean("国际友人", list1);
            list.add(gb1);
        }
        {
            List<ChildBean> list1 = new ArrayList<ChildBean>();
            ChildBean cb1 = new ChildBean("赵工", "123");
            ChildBean cb2 = new ChildBean("马工", "456");
            ChildBean cb3 = new ChildBean("王工", "789");
            ChildBean cb4 = new ChildBean("李工", "000");
            ChildBean cb5 = new ChildBean("为工", "000");
            list1.add(cb1);
            list1.add(cb2);
            list1.add(cb3);
            list1.add(cb4);
            list1.add(cb5);
            GroupBean gb1 = new GroupBean("同事", list1);
            list.add(gb1);
        }
    }
}

这里有两行代码我稍微说一下mListView.setGroupIndicator(null);表示不使用系统提供的展开和收起的图标，mListView.expandGroup(0);表示默认打开第一项。

好了，就说这些，有问题欢迎留言讨论。

本文源码下载地址https://github.com/lenve/expandablelistviewtest1
