使用idea2017搭建SSM框架

搭建个SSM框架居然花费了我好长时间！特此记录！

需要准备的环境：

idea 2017.1
jdk1.8
Maven 3.3.9

请提前将idea与Maven、jdk配置好，本次项目用的都是比较新的

注：配置完ide红线报错没关系！可以run！

步骤：

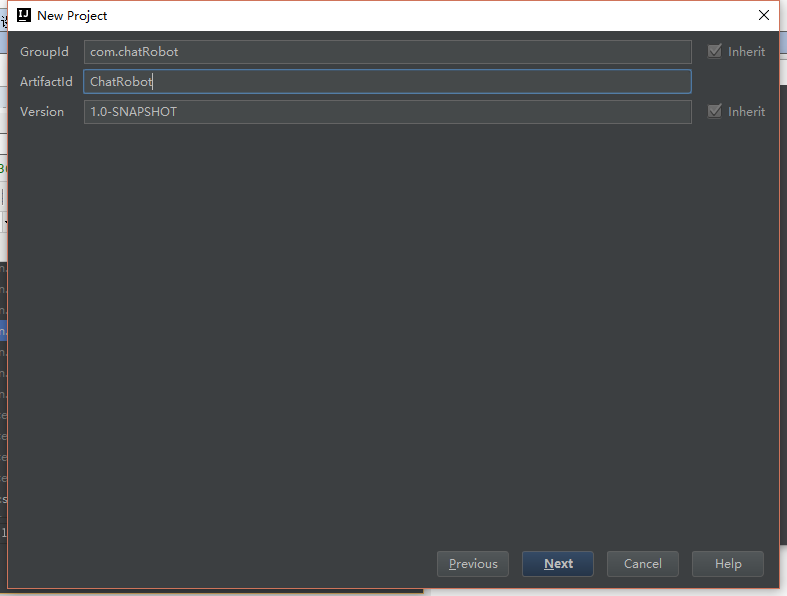

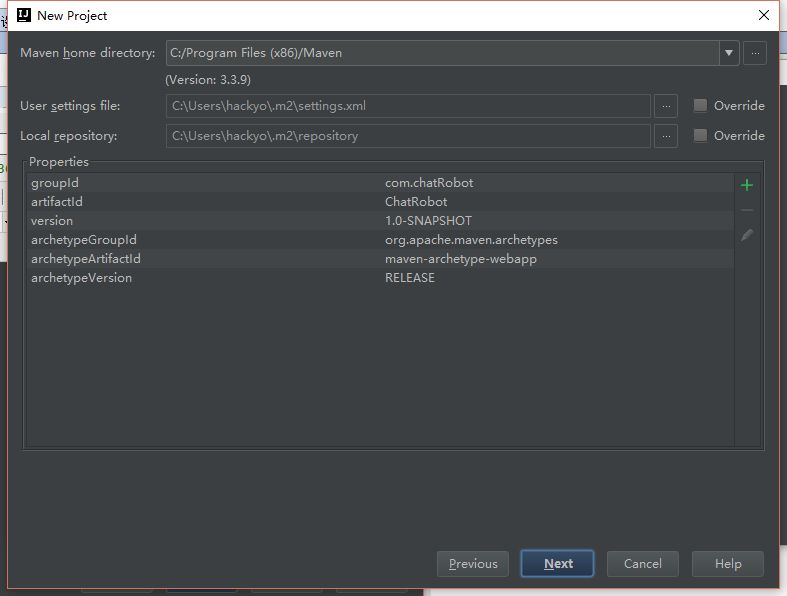

一、首先使用idea新建一个Maven webapp项目

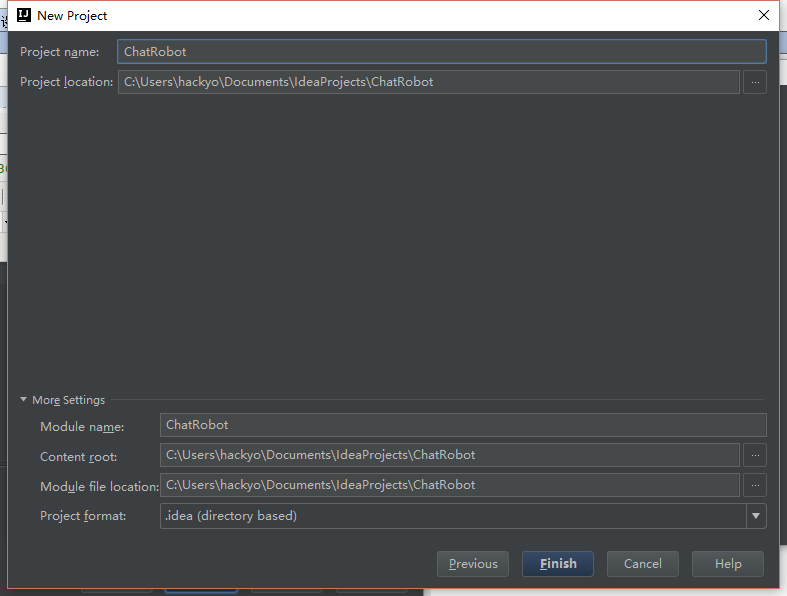

点击Finish，第一次搭建可能会很慢，甚至可能需要VPN才能搭建成功

二、搭建目录结构

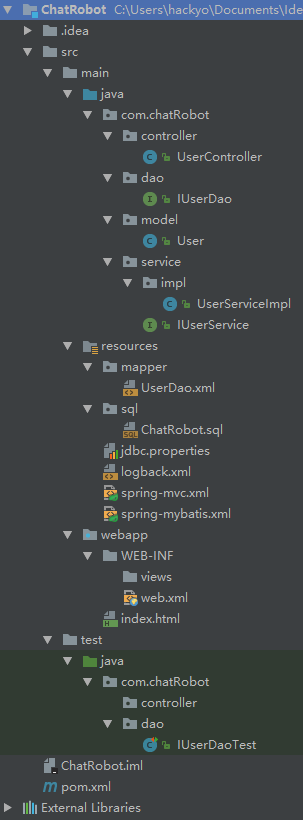

我这里列出的是搭建完了之后所有的目录和文件，诸位先把目录文件建起来，然后我在给出文件内容

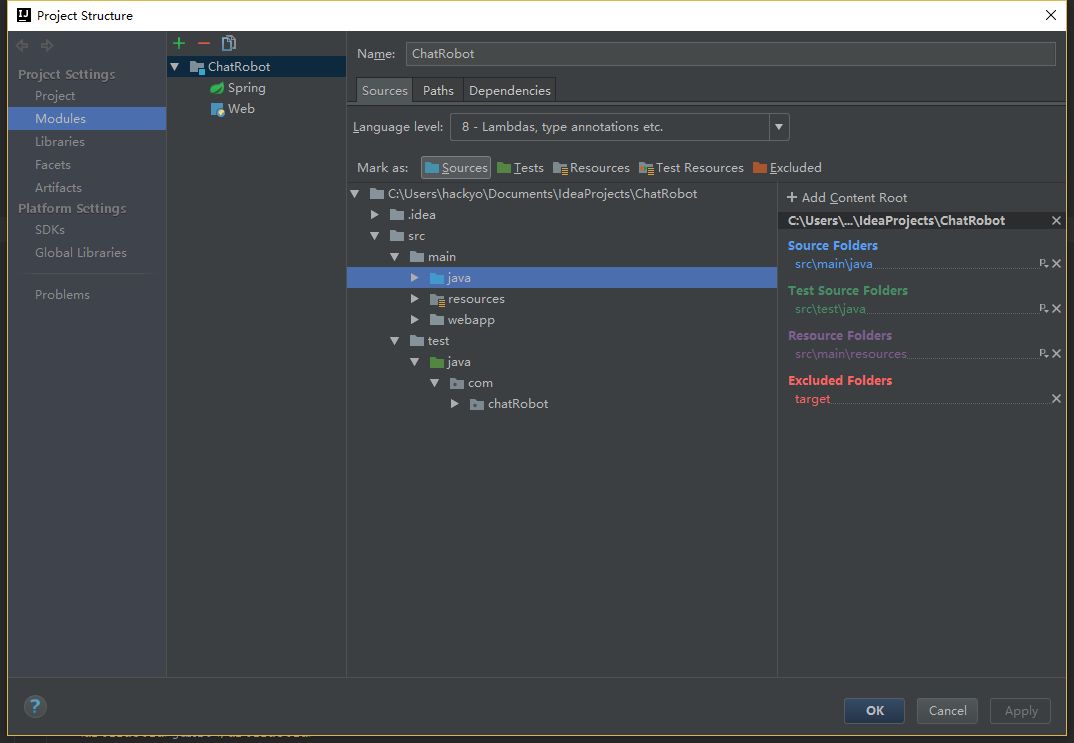

这里的目录建好之后还需要设置一下，让idea识别目录作用，选择File-Project Structure

设置完成后ok

三、配置文件内容

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">

    <modelVersion>4.0.0modelVersion>
    <groupId>com.chatRobotgroupId>
    <artifactId>ChatRobotartifactId>
    <packaging>warpackaging>
    <version>1.0-SNAPSHOTversion>
    <name>ChatRobot Maven Webappname>
    <url>http://maven.apache.orgurl>

    <properties>

        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8project.reporting.outputEncoding>

        <spring.version>4.3.5.RELEASEspring.version>

        <mybatis.version>3.4.1mybatis.version>
    properties>

    <dependencies>


        <dependency>
            <groupId>javaxgroupId>
            <artifactId>javaee-apiartifactId>
            <version>7.0version>
        dependency>


        <dependency>
            <groupId>junitgroupId>
            <artifactId>junitartifactId>
            <version>4.12version>
        dependency>


        <dependency>
            <groupId>ch.qos.logbackgroupId>
            <artifactId>logback-classicartifactId>
            <version>1.2.2version>
        dependency>


        <dependency>
            <groupId>com.fasterxml.jackson.coregroupId>
            <artifactId>jackson-databindartifactId>
            <version>2.8.7version>
        dependency>



        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>5.1.41version>
            <scope>runtimescope>
        dependency>


        <dependency>
            <groupId>com.mchangegroupId>
            <artifactId>c3p0artifactId>
            <version>0.9.5.2version>
        dependency>


        <dependency>
            <groupId>org.mybatisgroupId>
            <artifactId>mybatisartifactId>
            <version>${mybatis.version}version>
        dependency>


        <dependency>
            <groupId>org.mybatisgroupId>
            <artifactId>mybatis-springartifactId>
            <version>1.3.1version>
        dependency>


        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-coreartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-beansartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-contextartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-jdbcartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-txartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-webartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-webmvcartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-testartifactId>
            <version>${spring.version}version>
        dependency>

    dependencies>

    <build>
        <finalName>ChatRobotfinalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.pluginsgroupId>
                <artifactId>maven-compiler-pluginartifactId>
                <configuration>

                    <source>1.8source>
                    <target>1.8target>
                configuration>
            plugin>
        plugins>
    build>

project>

注意右下角更新pom

logback.xml

xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%npattern>
        encoder>
    appender>
    <root level="debug">
        <appender-ref ref="STDOUT"/>
    root>
configuration>

这里可以控制输出格式和内容，有兴趣的可以自己设置

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://xxxxxxxxx:3306/ChatRobot?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=xxxx
#密码
jdbc.password=xxxxx
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

spring-mybatis.xml

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">


    <context:component-scan base-package="com.chatRobot.service"/>


    <context:property-placeholder location="classpath:jdbc.properties"/>


    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    bean>


    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">

        <property name="dataSource" ref="dataSource"/>

        <property name="typeAliasesPackage" value="com.chatRobot.model"/>

        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    bean>


    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">

        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>

        <property name="basePackage" value="com.chatRobot.dao"/>
    bean>


    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">

        <property name="dataSource" ref="dataSource"/>
    bean>


    <tx:annotation-driven transaction-manager="transactionManager"/>

beans>

spring-mvc.xml

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">


    <context:component-scan base-package="com.chatRobot.controller"/>


    <mvc:annotation-driven/>


    <mvc:default-servlet-handler/>


    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    bean>

beans>

web.xml

xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <display-name>ChatRobotdisplay-name>
    <description>ChatRobot_Alpha_0.0.1description>


    <filter>
        <filter-name>encodingFilterfilter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
        <init-param>
            <param-name>encodingparam-name>
            <param-value>UTF-8param-value>
        init-param>
    filter>
    <filter-mapping>
        <filter-name>encodingFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>


    <servlet>
        <servlet-name>SpringMVCservlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>

        <init-param>
            <param-name>contextConfigLocationparam-name>
            <param-value>classpath:spring-*.xmlparam-value>
        init-param>
        <load-on-startup>1load-on-startup>
        <async-supported>trueasync-supported>
    servlet>
    <servlet-mapping>
        <servlet-name>SpringMVCservlet-name>

        <url-pattern>/url-pattern>
    servlet-mapping>

    <welcome-file-list>
        <welcome-file>index.htmlwelcome-file>
    welcome-file-list>

web-app>

到这里基本上环境就搭建完成了，下面开始测试

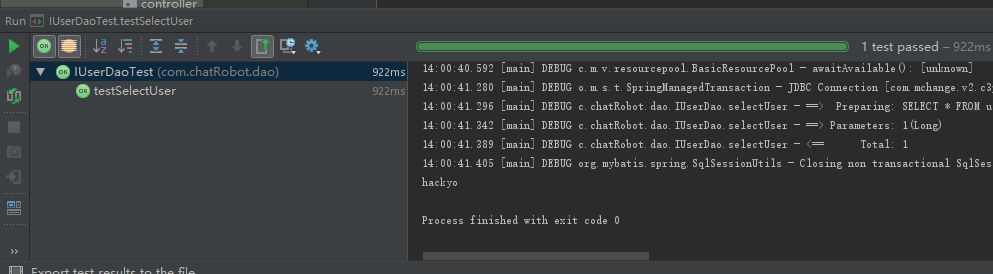

四、测试

先导入一份数据库测试文件

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '用户ID',
  `email` varchar(255) NOT NULL COMMENT '用户邮箱',
  `password` varchar(255) NOT NULL COMMENT '用户密码',
  `username` varchar(255) NOT NULL COMMENT '用户昵称',
  `role` varchar(255) NOT NULL COMMENT '用户身份',
  `status` int(1) NOT NULL COMMENT '用户状态',
  `regTime` datetime NOT NULL COMMENT '注册时间',
  `regIp` varchar(255) NOT NULL COMMENT '注册IP',
  PRIMARY KEY (`id`),
  UNIQUE KEY `email` (`email`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
INSERT INTO `user` VALUES ('1', 'xxx', 'xxxxx', 'xxxxx', 'root', '0', '2017-03-28 09:40:31', '127.0.0.1');
SET FOREIGN_KEY_CHECKS=1;

接下来配置类

UserController

package com.chatRobot.controller;

import javax.servlet.http.HttpServletRequest;

import com.chatRobot.model.User;
import com.chatRobot.service.IUserService;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Controller
@RequestMapping("/user")
public class UserController {

    @Resource
    private IUserService userService;

    @RequestMapping("/showUser.do")
    public void selectUser(HttpServletRequest request, HttpServletResponse response) throws IOException {
        request.setCharacterEncoding("UTF-8");
        response.setCharacterEncoding("UTF-8");
        long userId = Long.parseLong(request.getParameter("id"));
        User user = this.userService.selectUser(userId);
        ObjectMapper mapper = new ObjectMapper();
        response.getWriter().write(mapper.writeValueAsString(user));
        response.getWriter().close();
    }

}

IUserDao

package com.chatRobot.dao;
import com.chatRobot.model.User;
public interface IUserDao {

    User selectUser(long id);

}

User

package com.chatRobot.model;

import java.util.Date;

public class User {

    private long id;
    private String email;
    private String password;
    private String username;
    private String role;
    private int status;
    private Date regTime;
    private String regIp;

    public long getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getRole() {
        return role;
    }

    public void setRole(String role) {
        this.role = role;
    }

    public int getStatus() {
        return status;
    }

    public void setStatus(int status) {
        this.status = status;
    }

    public Date getRegTime() {
        return regTime;
    }

    public void setRegTime(Date regTime) {
        this.regTime = regTime;
    }

    public String getRegIp() {
        return regIp;
    }

    public void setRegIp(String regIp) {
        this.regIp = regIp;
    }

}

IUserService

package com.chatRobot.service;
import com.chatRobot.model.User;
public interface IUserService {

    public User selectUser(long userId);

}

UserServiceImpl

package com.chatRobot.service.impl;

import com.chatRobot.dao.IUserDao;
import com.chatRobot.model.User;
import com.chatRobot.service.IUserService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service("userService")
public class UserServiceImpl implements IUserService {

    @Resource
    private IUserDao userDao;

    public User selectUser(long userId) {
        return this.userDao.selectUser(userId);
    }

}

UserDao.xml

xml version="1.0" encoding="UTF-8"?>



<mapper namespace="com.chatRobot.dao.IUserDao">

    <select id="selectUser" resultType="User" parameterType="long">
        SELECT * FROM user WHERE id = #{id}
    select>

mapper>

然后新建个测试类，来测试mybatis

IUserDaoTest

package com.chatRobot.dao;

import com.chatRobot.model.User;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

// 加载spring配置文件
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:spring-mybatis.xml"})
public class IUserDaoTest {

    @Autowired
    private IUserDao dao;

    @Test
    public void testSelectUser() throws Exception {
        long id = 1;
        User user = dao.selectUser(id);
        System.out.println(user.getUsername());
    }

}

运行后结果应该是会在控制台输出id为1的用户名，没成功的话就找BUG去吧...

继续新建个页面来测试springmvc和mybatis

index.html


<html>
<head>
    <meta charset="UTF-8">
    <title>testtitle>
head>
<script>
    function selectUser() {
        var xmlhttp = new XMLHttpRequest();
        xmlhttp.onreadystatechange = function () {
            if (xmlhttp.readyState == 4 && xmlhttp.status == 200) {
                document.getElementById("test").innerHTML = xmlhttp.responseText;
            }
        }
        xmlhttp.open("POST", "user/showUser.do", true);
        xmlhttp.setRequestHeader("Content-type", "application/x-www-form-urlencoded");
        xmlhttp.send("id=1");
    }
script>
<body>
<p id="test">Hello World!p>
<button type="button" onclick="selectUser()">onclick testbutton>
body>
html>
