Android+SSH开发商城App（1）数据库的创建和环境的搭建

项目简介

该项目主要是使用SSH开发Android后端服务器程序和前端App代码的实现，主要技术包含：
Android AsyncTask 、常见自定义控件、客户端高层类封装、Android HTTP通信、用户管理、购物流程、定位、二维码等知识点，希望大家跟踪查看最新的学习笔记。

数据库的创建

数据库使用的是MySQL5.6版本，脚本代码如下：

SET FOREIGN_KEY_CHECKS=0;

DROP TABLE IF EXISTS `admin`;
CREATE TABLE `admin` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `loginName` varchar(100) DEFAULT NULL,
  `passowrd` varchar(64) DEFAULT NULL,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=latin1;


DROP TABLE IF EXISTS `cversion`;
CREATE TABLE `cversion` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `versionName` varchar(100) DEFAULT NULL,
  `versionCode` int(11) DEFAULT NULL,
  `updateDate` datetime DEFAULT NULL,
  `downloadUrl` varchar(200) DEFAULT NULL,
  `apkSize` varchar(100) DEFAULT NULL,
  `apkName` varchar(200) DEFAULT NULL,
  `updateLog` varchar(500) DEFAULT NULL,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;



DROP TABLE IF EXISTS `goods`;
CREATE TABLE `goods` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `shopID` bigint(20) DEFAULT NULL,
  `code` varchar(100) DEFAULT NULL,
  `name` varchar(200) DEFAULT NULL,
  `thumbnail` varchar(200) DEFAULT NULL,
  `price` decimal(8,0) DEFAULT NULL,
  `weight` decimal(8,0) DEFAULT NULL,
  `color` varchar(100) DEFAULT NULL,
  `factoryAddr` varchar(200) DEFAULT NULL,
  `producer` varchar(200) DEFAULT NULL,
  `productedDate` datetime DEFAULT NULL,
  `RegisterDate` datetime DEFAULT NULL,
  `IsHost` char(1) DEFAULT NULL COMMENT '1为促销商品；0为普通商品',
  `describes` text,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=14 DEFAULT CHARSET=utf8;



DROP TABLE IF EXISTS `goodspic`;
CREATE TABLE `goodspic` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `shopID` bigint(20) DEFAULT NULL,
  `picurl` varchar(200) DEFAULT NULL,
  `linkurl` varchar(200) DEFAULT NULL,
  `orders` int(11) DEFAULT NULL,
  `status` char(1) DEFAULT NULL COMMENT '1为显示，0为隐藏',
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1;


DROP TABLE IF EXISTS `scanrecord`;
CREATE TABLE `scanrecord` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `userID` bigint(20) DEFAULT NULL,
  `code` varchar(100) DEFAULT NULL,
  `scanTime` datetime DEFAULT NULL,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1;


DROP TABLE IF EXISTS `shop`;
CREATE TABLE `shop` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(200) DEFAULT NULL,
  `logo` varchar(200) DEFAULT NULL,
  `phoneNum` char(20) DEFAULT NULL,
  `addr` varchar(200) DEFAULT NULL,
  `lngitude` double(9,6) DEFAULT NULL,
  `latitude` double(9,6) DEFAULT NULL,
  `type` char(1) DEFAULT NULL,
  `describes` text,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;



DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `UserName` varchar(200) DEFAULT NULL,
  `password` varchar(32) DEFAULT NULL,
  `felling` varchar(200) DEFAULT NULL,
  `head` varchar(200) DEFAULT NULL,
  `regtime` datetime DEFAULT NULL,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;


DROP VIEW IF EXISTS `v_goods`;
CREATE ALGORITHM=UNDEFINED DEFINER=`videoadmin`@`` SQL SECURITY DEFINER VIEW `v_goods` AS select `goods`.`ID` AS `ID`,`goods`.`shopID` AS `shopID`,`goods`.`code` AS `code`,`goods`.`name` AS `goods_name`,`goods`.`thumbnail` AS `thumbnail`,`goods`.`price` AS `price`,`goods`.`weight` AS `weight`,`goods`.`color` AS `color`,`goods`.`factoryAddr` AS `factoryAddr`,`goods`.`producer` AS `producer`,`goods`.`productedDate` AS `productedDate`,`goods`.`RegisterDate` AS `RegisterDate`,`goods`.`IsHost` AS `IsHost`,`goods`.`describes` AS `goods_desc`,`shop`.`name` AS `shop_name`,`shop`.`logo` AS `logo`,`shop`.`phoneNum` AS `phoneNum`,`shop`.`addr` AS `addr`,`shop`.`lngitude` AS `lngitude`,`shop`.`latitude` AS `latitude`,`shop`.`type` AS `type`,`shop`.`describes` AS `shop_desc` from (`goods` join `shop`) where (`goods`.`shopID` = `shop`.`ID`);

创建数据库如下：

SSH环境搭建

我们使用“纯手工”的方式搭建自己的SSH环境

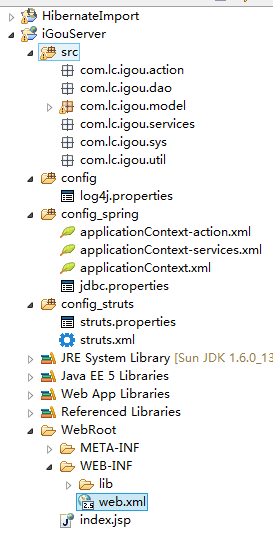

（1）创建一个Web Project（可以根据下边的图片建立工程）

注意：当我们创建config_struts、config_spring、config文件的时候一定要在文件上点击右键build path–use as sources folder
这样的话，在编译的时候才会把这三个配置文件加入到class目录中，否则会找不到。加入之后的话就像我上图中的一样和src是同级目录的，上边有一个package的图标的样式！

（2）配置文件的简单介绍：
log4j.properties

#
log4j.rootLogger=INFO,stdout
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d %-5p [%t] %-17c{2} (%13F:%L) %3x - %m%n

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="
            http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
            http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
            http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">


    <!-- 这一句话是允许加载properties配置文件 -->
    <bean id="propertyConfigurer"
        class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="location">
            <value>classpath:jdbc.properties</value>
        </property>
    </bean>

    <!-- 配置数据源 -->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close">
        <property name="driverClassName">
            <value>${datasource.driverClassName}</value>
        </property>
        <property name="url">
            <value>${datasource.url}</value>
        </property>
        <property name="username">
            <value>${datasource.username}</value>
        </property>
        <property name="password">
            <value>${datasource.password}</value>
        </property>
    </bean>

    <!-- 配置sessionFactory -->
    <bean id="sessionFactory"
        class="org.springframework.orm.hibernate3.annotation.AnnotationSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="mappingDirectoryLocations">
            <list>
                <!-- <value>classpath:com/lc/igou/model</value> -->
            </list>
        </property>

        <property name="hibernateProperties">
            <props>
                <prop key="hibernate.dialect">${hibernate.dialect}</prop>
                <prop key="hibernate.show_sql">${hibernate.show_sql}</prop>
                <prop key="hibernate.format_sql">${hibernate.format_sql}</prop>
                <!-- 缓存配置 -->
                <prop key="hibernate.cache.provider_class">${hibernate.cache.provider_class}</prop>
                <prop key="hibernate.cache.use_query_cache">${hibernate.cache.use_query_cache}</prop>
                <prop key="hibernate.cache.use_second_level_cache">${hibernate.cache.use_second_level_cache}</prop>
            </props>
        </property>
    </bean>


    <!-- 配置事务管理器 -->
    <bean id="transactionManager"
        class="org.springframework.orm.hibernate3.HibernateTransactionManager">
        <property name="sessionFactory">
            <ref bean="sessionFactory" />
        </property>
    </bean>

    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="save*" propagation="REQUIRED" />
            <tx:method name="insert*" propagation="REQUIRED" />
            <tx:method name="add*" propagation="REQUIRED" />
            <tx:method name="update*" propagation="REQUIRED" />
            <tx:method name="delete*" propagation="REQUIRED" />
            <tx:method name="del*" propagation="REQUIRED" />
            <tx:method name="*" read-only="true" />
        </tx:attributes>
    </tx:advice>


    <!-- <aop:config proxy-target-class="true">
        <aop:pointcut expression="execution(* com.lc.igou..*Services.*(..))"
            id="myPointcut" />
        <aop:advisor advice-ref="txAdvice" pointcut-ref="myPointcut" />
    </aop:config> -->

</beans>

jdbc.properties

datasource.type=mysql
datasource.driverClassName=com.mysql.jdbc.Driver
datasource.url=jdbc:mysql://localhost:3306/lcgou?autoReconnect=true&amp;useUnicode=true&amp;characterEncoding=UTF-8
datasource.username=root
datasource.password=1111
datasource.maxActive=100
datasource.maxIdle=2
datasource.maxWait=120000
datasource.whenExhaustedAction=1
datasource.validationQuery=select 1 from dual
datasource.testOnBorrow=true
datasource.testOnReturn=false
##########################  c3p0  ############################
c3p0.acquireIncrement=3
c3p0.acquireRetryAttempts=30
c3p0.acquireRetryDelay=100
c3p0.initialPoolSize=3
c3p0.idleConnectionTestPeriod=900
c3p0.minPoolSize=2
c3p0.maxPoolSize=10
c3p0.maxStatements=0
c3p0.numHelperThreads=10
c3p0.maxIdleTime=30
#####################   Hibernate  ##################################
hibernate.dialect=org.hibernate.dialect.MySQLDialect
hibernate.jdbc.batch_size=25
hibernate.jdbc.fetch_size=50
hibernate.show_sql=true
hibernate.connection.release_mode=after_transaction
hibernate.format_sql=true
hibernate.cache.provider_class=org.hibernate.cache.EhCacheProvider
hibernate.cache.use_query_cache=true
hibernate.cache.use_second_level_cache=true

struts.properties

#struts.custom.i18n.resources=messageResource


struts.i18n.encoding=UTF-8
struts.objectFactory.spring.useClassCache = true
struts.multipart.parser=jakarta
struts.multipart.saveDir=
struts.multipart.maxSize=2097152
struts.serve.static=true
struts.serve.static.browserCache=true
struts.enable.DynamicMethodInvocation = true
struts.enable.SlashesInActionNames = false
struts.tag.altSyntax=true
struts.devMode = false
struts.i18n.reload=false
struts.ui.theme=xhtml
struts.ui.templateDir=template
struts.ui.templateSuffix=ftl
struts.url.includeParams = get
struts.dispatcher.parametersWorkaround = false
struts.freemarker.templatesCache=false
struts.freemarker.wrapper.altMap=true
struts.xslt.nocache=false
struts.configuration.files=struts-default.xml,struts-plugin.xml,struts.xml

struts.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.1//EN" "http://struts.apache.org/dtds/struts-2.1.dtd">
<struts>

    <package name="df" extends="struts-default">
        <action name="userlogin" class="userAction" method="login" />
    </package>

    <package name="goods" extends="struts-default">
        <action name="findgoods" class="goodsAction" method="findGoods" />
        <action name="findGoodsByCode" class="goodsAction" method="findGoodsByCode" />
    </package>
    <package name="version" extends="struts-default">
        <action name="update" class="versionAction" method="updateVersion" />
    </package>

</struts>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

    <!-- 项目的ID -->
    <context-param>
        <param-name>webAppRootKey</param-name>
        <param-value>iGouServer.root</param-value>
    </context-param>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext*.xml</param-value>
    </context-param>

    <!-- 日志配置 -->
    <context-param>
        <param-name>log4jConfigLocation</param-name>
        <param-value>classpath:log4j.properties</param-value>
    </context-param>

    <!-- 监听器配置 -->
    <listener>
        <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
    </listener>
    <!-- 内存管理，防止内存溢出 -->
    <listener>
        <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
    </listener>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- filter配置 struts的配置 -->
    <filter>
        <filter-name>struts2</filter-name>
        <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>*.action</url-pattern>
    </filter-mapping>
    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>*.jsp</url-pattern>
    </filter-mapping>

    <!-- 编码方式的配置 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 欢迎首页配置 -->
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>

</web-app>

上边的配置文件，了解SSH的应该都比较清楚，不过多解释，都有注释

（3）关于使用Hibernate，因为我们没有在项目中进行直接的逆向，而是使用jar直接导入的，那么我们就可以童工另一个项目HibernateImport 通过hibernate的逆向工程生成model，然后再复制到自己的项目文件下

原项目环境初步搭建代码地址： 链接：http://pan.baidu.com/s/1jGh8crs 密码：y5go

后续内容持续更新!

本文标题：Android+SSH开发商城App（1）数据库的创建和环境的搭建

本文链接：https://blog.quwenai.cn/post/3861.html

作者授权：除特别说明外，本文由 toobug 原创编译并授权 TOOBUG信息安全网刊载发布。

本文链接：https://blog.quwenai.cn/post/3861.html

分享到：

正文

Android+SSH开发商城App（1）数据库的创建和环境的搭建

项目简介

数据库的创建

SSH环境搭建

相关阅读

iOS 稳定性问题治理：卡死崩溃监控原理及最佳实践

android之listView定位到指定行同时隐藏输入键盘

漫话：应用程序被拖慢？罪魁祸首竟然是Log4j！

Android简单的学生管理系统

发表评论取消回复

还没有评论，来说两句吧...

目录[+]
