前段时间包同学到一家公司去面试,面试官问他如果不用TerminateProcess如何实现关闭进程,作为一个快要毕业的人来说对这个问题很敏感,毕竟也要面对这关. 现在问题摆在面前,如何解决这个问题,想了想最好的方法就是直接看操作系统怎么实现 TerminateProcess 的自己实现个就好了,在一定程度上就可以阻止别人通过hook技术来拦截. 这段代码很早就写好了,但是帖子什么的一直没什么时间写(薛老师今天讲的壳还没有脱),写完这篇帖子去脱壳了
另外: 本人小菜,大神们轻点喷
开始吧!下面截图的代码都是win2000的代码,在看源码的同时有时候需要用ida打开win7的ntoskrnl.exe对比着看,所幸的是虽然经过很多版本更迭,但是这块的基本原理没啥变化,所以就尽量不贴ida反汇编的图了(可读性差)

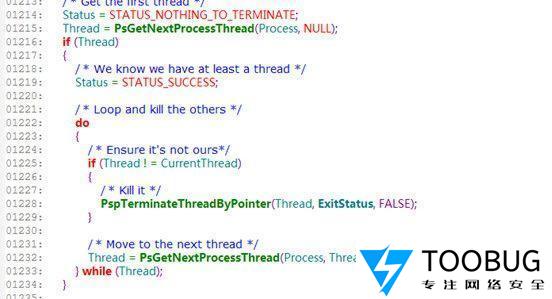

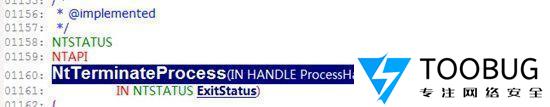

NtTerminateProcess的函数实现,其中最关键的 如图:
这个函数主要干的事情就是遍历进程的线程,然后对每个线程执行PspTerminateThreadByPointer
再分析下 PspTerminateThreadByPointer 函数的实现
这个函数是分两种情况的:

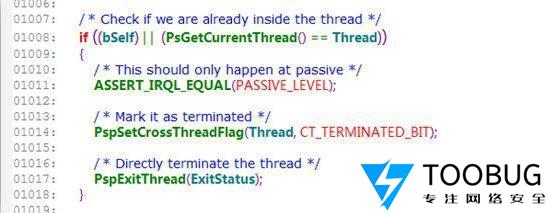

情况一,是线程自己关闭自己:直接执行PspExitThread
PspExitThread这个函数太庞杂简单说下它的作用:
1. 执行了一大堆清理代码,主要清理当前线程Ethread的资源
2. 从调度链表和等待链表中去掉它
3. 如果是进程的最后一个线程,直接清理进程空间
4. 执行KiSwapThread切换到一个新线程去

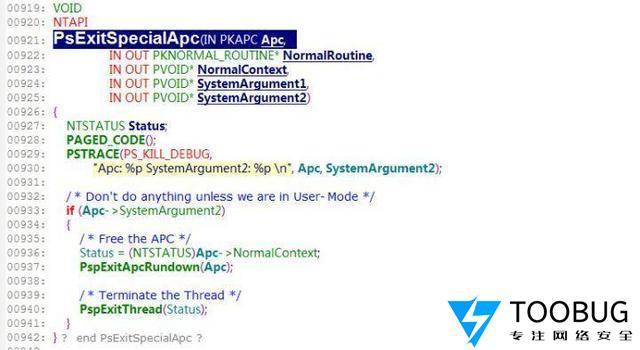

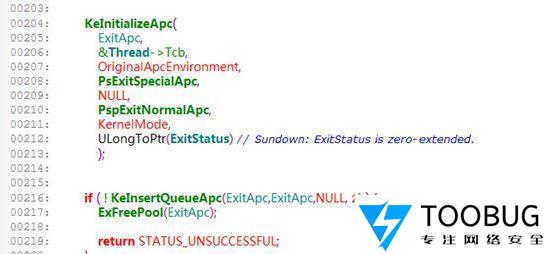

情况二,关闭掉别的线程:在对方线线程中插入一个内核apc,这个内核apc最后会调用PspExitThread函数
PspTerminateThreadByPointer 和NtTerminateProcess分析总结:
1. 所谓杀死进程,其实只要把每个线程杀死就好了,最后一个线程会负责收尸的
2. 线程不能被杀死,只能自杀.所以如果想杀掉线程最好让它自己执行自杀代码,内核apc(后面会简单讲下内核apc,没法深入再讲就错题了)是个不错的选择
内核Apc执行的时机(讲的不对请指正哈):

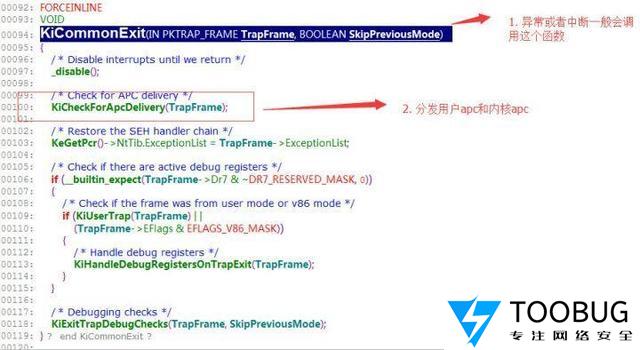

1. 中断和异常返回,下面是ReatOs的代码(贴代码为证,避免别人说我瞎哔哔O(∩_∩)O哈哈~)

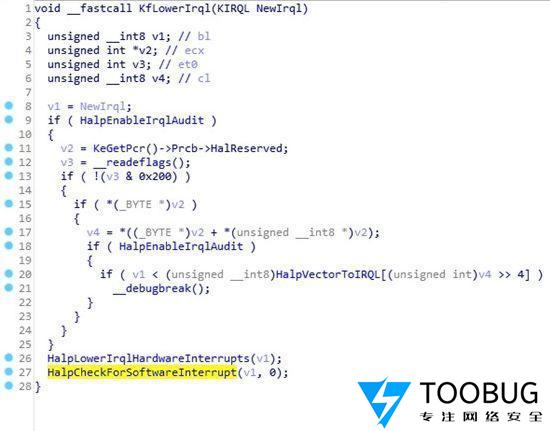

2. 高irql转到第irql,这块直接看win732逆向的代码:KfLowerIrql

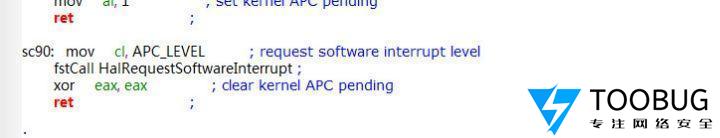

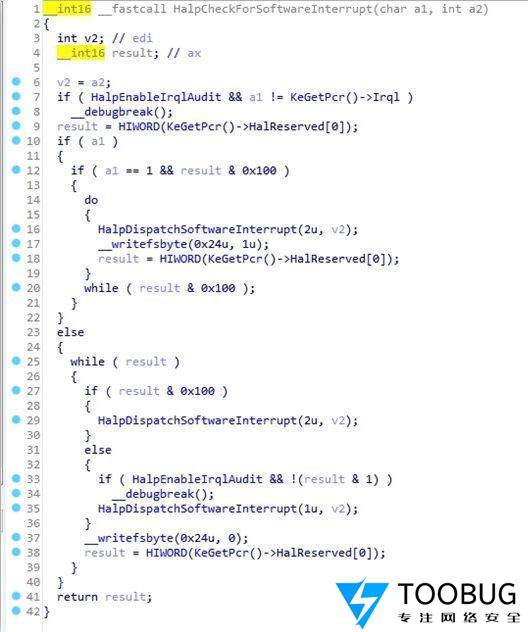

主要关注: HalpCheckForSoftwareInterrrupt

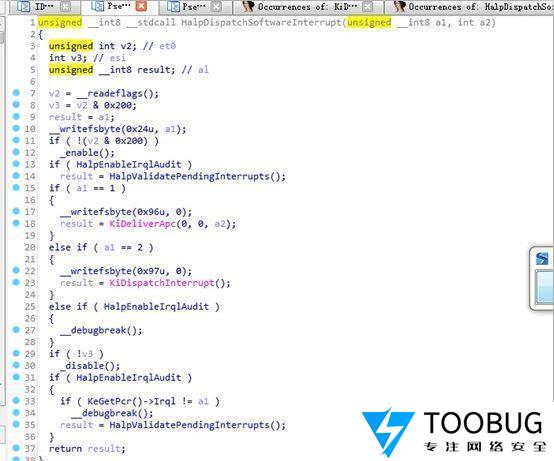

执行apc的地方就是KiDeliverApc

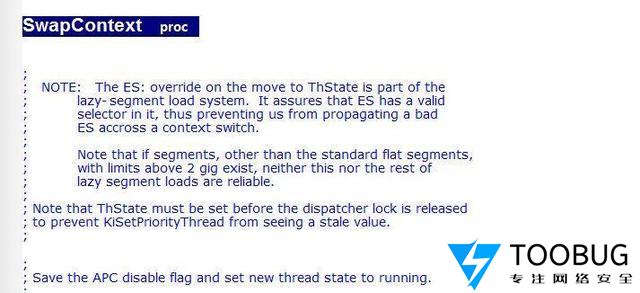

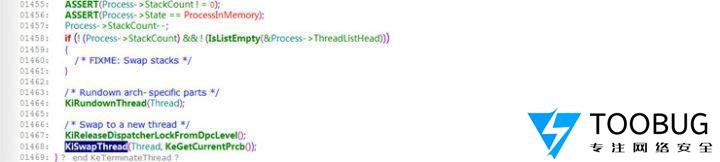

3. 线程切换的时候,还是直接贴win2000的代码
原理讲完了,现在直接贴效果图了:

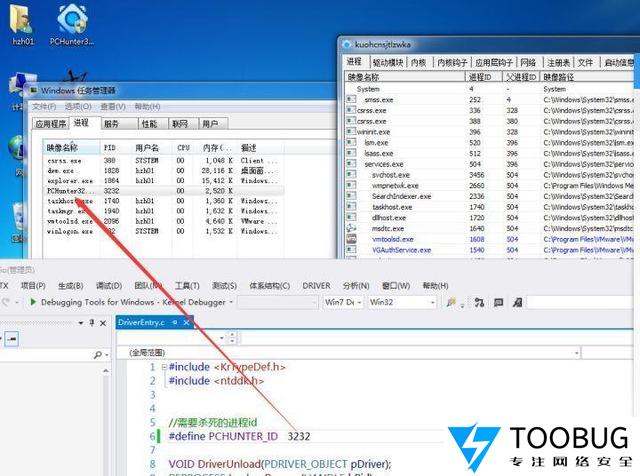

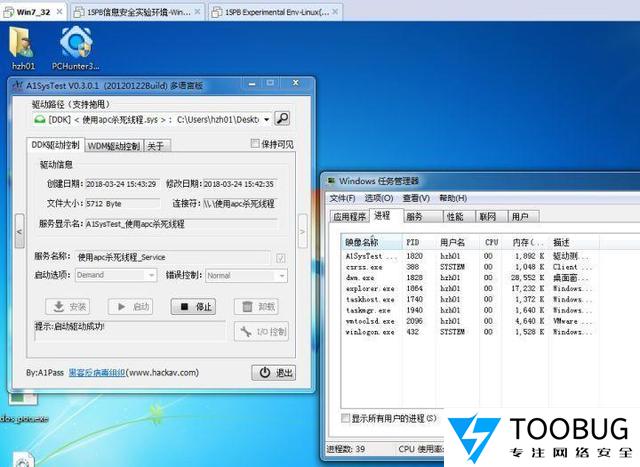

杀掉之前,写好进程id:
执行完杀掉的代码:
另外直接附上代码:
Entry.c
#include
#include
//需要杀死的进程id
#define PCHUNTER_ID 3232
VOID DriverUnload(PDRIVER_OBJECT pDriver);
PEPROCESS LookupProcess(HANDLE hPid);
PETHREAD LookupThread(HANDLE hTid);
VOID KillProcess(PEPROCESS pEProcess);
ULONG GetPspTerminateThreadByPointer();
ULONG GetPspExitThread(ULONG PspTerminateThreadByPointer);
VOID SelfTerminateThread(
KAPC *Apc,
PKNORMAL_ROUTINE *NormalRoutine,
PVOID *NormalContext,
PVOID *SystemArgument1,
PVOID *SystemArgument2);
fpTypePspExitThread g_fpPspExitThreadAddr = NULL;
NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING pPath)
{
DbgBreakPoint();
pDriver->DriverUnload = DriverUnload;
//提前把函数查找出来
ULONG uPspTerminateThreadByPointerAddr = GetPspTerminateThreadByPointer();
if (0 == uPspTerminateThreadByPointerAddr)
{
KdPrint(("查找PspTerminateThreadByPointerAddr地址出错\n"));
return STATUS_SUCCESS;
}
g_fpPspExitThreadAddr = (fpTypePspExitThread)GetPspExitThread(uPspTerminateThreadByPointerAddr);
if (NULL == g_fpPspExitThreadAddr)
{
KdPrint(("查找PspExitThread地址出错\n"));
return STATUS_SUCCESS;
}
//
PEPROCESS pProcess = LookupProcess((HANDLE)PCHUNTER_ID);
if (NULL == pProcess)
{
KdPrint((("没有在PsCidTable中找到进程,尼玛不会隐藏了吧\n")));
}
else
{
KillProcess(pProcess);
}
return STATUS_SUCCESS;
}
VOID DriverUnload(PDRIVER_OBJECT pDriver)
{
KdPrint(("驱动退出\n"));
}
PEPROCESS LookupProcess(HANDLE hPid)
{
PEPROCESS pEProcess = NULL;
if (NT_SUCCESS(PsLookupProcessByProcessId(hPid, &pEProcess)))
return pEProcess;
return NULL;
}
VOID KillProcess(PEPROCESS pEProcess)
{
PEPROCESS pEProc = NULL;
PETHREAD pEThrd = NULL;
ULONG i = 0;
for (i = 4; i < 0x25600; i += 4)
{
pEThrd = LookupThread((HANDLE)i);
if (!pEThrd) continue;
pEProc = IoThreadToProcess(pEThrd);
if (pEProc == pEProcess)
{
PKAPC pApc = NULL;
pApc = (PKAPC)ExAllocatePool(NonPagedPool, sizeof(KAPC));
if (NULL == pApc) return;
//插入内核apc
KeInitializeApc(pApc, (PKTHREAD)pEThrd, OriginalApcEnvironment, (PKKERNEL_ROUTINE)&SelfTerminateThread, NULL, NULL, 0, NULL);
KeInsertQueueApc(pApc, NULL, 0, 2);
}
ObDereferenceObject(pEThrd);
}
}
PETHREAD LookupThread(HANDLE hTid)
{
PETHREAD pEThread = NULL;
if (NT_SUCCESS(PsLookupThreadByThreadId(hTid, &pEThread)))
return pEThread;
return NULL;
}
VOID SelfTerminateThread(
KAPC *Apc,
PKNORMAL_ROUTINE *NormalRoutine,
PVOID *NormalContext,
PVOID *SystemArgument1,
PVOID *SystemArgument2)
{
ExFreePool(Apc);
g_fpPspExitThreadAddr(STATUS_SUCCESS);
}
ULONG GetPspTerminateThreadByPointer()
{
UNICODE_STRING funcName;
RtlInitUnicodeString(&funcName, L"PsTerminateSystemThread");
ULONG step = 0;
ULONG targetFunAddr = 0;
ULONG baseFunAddr = (ULONG)MmGetSystemRoutineAddress(&funcName);
for (step = baseFunAddr; step < (baseFunAddr + 1024); step++)
{
//searching for 0x50,0xe8
if (((*(PUCHAR)(UCHAR*)(step - 1)) == 0x50) && ((*(PUCHAR)(UCHAR*)(step)) == 0xe8))
{
ULONG offset = *(PULONG)(step + 1);
targetFunAddr = step + 5 + offset;
break;
}
}
return targetFunAddr;
} //PspExitThread stamp code:0x0c 0xe8
ULONG GetPspExitThread(ULONG PspTerminateThreadByPointer)
{
ULONG step = 0;
ULONG targetFunAddr = 0;
ULONG baseFunc = PspTerminateThreadByPointer;
for (step = baseFunc; step < (baseFunc + 1024); step++)
{
//searching for 0x0c,0xe8
if (((*(PUCHAR)(UCHAR*)(step - 1)) == 0x0c) && ((*(PUCHAR)(UCHAR*)(step)) == 0xe8))
{
ULONG m_offset = *(PULONG)(step + 1);
targetFunAddr = step + 5 + m_offset;
break;
}
}
return targetFunAddr;
}
KrTypeDef.h#pragma once
#include
#include
#pragma warning(disable:4189 4100)
typedef enum _KAPC_ENVIRONMENT
{
OriginalApcEnvironment,
AttachedApcEnvironment,
CurrentApcEnvironment,
InsertApcEnvironment
} KAPC_ENVIRONMENT;
typedef VOID (*PKNORMAL_ROUTINE) (
IN PVOID NormalContext,
IN PVOID SystemArgument1,
IN PVOID SystemArgument2
);
typedef VOID(*PKKERNEL_ROUTINE) (
IN struct _KAPC *Apc,
IN OUT PKNORMAL_ROUTINE *NormalRoutine,
IN OUT PVOID *NormalContext,
IN OUT PVOID *SystemArgument1,
IN OUT PVOID *SystemArgument2
);
typedef VOID(*PKRUNDOWN_ROUTINE) (
IN struct _KAPC *Apc
);
VOID NTAPI KeInitializeApc(__in PKAPC Apc,
__in PKTHREAD Thread,
__in KAPC_ENVIRONMENT TargetEnvironment,
__in PKKERNEL_ROUTINE KernelRoutine,
__in_opt PKRUNDOWN_ROUTINE RundownRoutine,
__in PKNORMAL_ROUTINE NormalRoutine,
__in KPROCESSOR_MODE Mode,
__in PVOID Context
);
BOOLEAN NTAPI KeInsertQueueApc(IN PKAPC Apc,
IN PVOID SystemArgument1,
IN PVOID SystemArgument2,
IN KPRIORITY PriorityBoost);
typedef VOID(NTAPI *fpTypePspExitThread)(
IN NTSTATUS ExitStatus
);
#define OFFSET(type, f) ((SIZE_T) \
((char *)&((type *)0)->f - (char *)(type *)0))

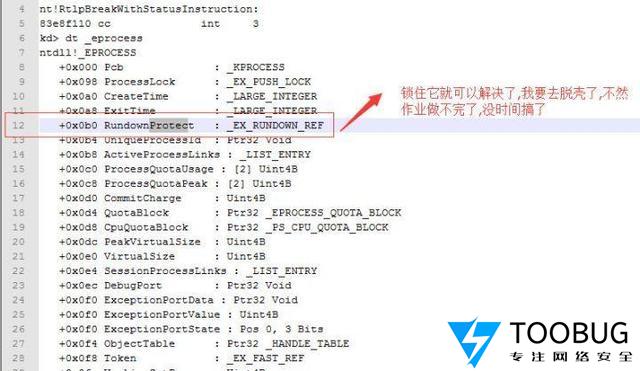

ps:代码有处bug,就是假设在杀线程的同时创建线程怎么办?
最后谢谢大家！
